SBEV-RCAR-KF-GMSL02 (GMSL Camera Board)

SBEV-RCAR-KF-GMSL02 (GMSL Camera Board)

Kingfisher用のカメラボード

動作確認済みカメラ：関連情報に記載

CPU-

• 製品イメージ
• 仕様
• ドキュメント
• 関連情報

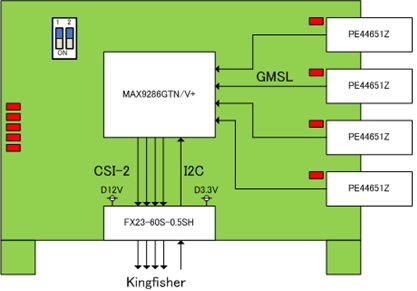

• BLOCK DIAGRA


• Features
  Serializer	MAX9286GTN/V+x1
  Connector	PE44651Z(FAKRA) x4 (Camera side) FX23-60S-0.5SHx1 (kingfisher side)
  Control	I2Cx1
  DIP Switch	Mode select x1
  LEDs	Link LED x4、Mode LEDx5
  Board size	92mm×64mm
  Power	DC 3.3V、12V(via connector)

• 　 　 　 　 　

  File name	Revision	Date	Download
  Hardware specification EN	----	2018/--/--
  Hardware specification JP	----	2018/--/--
  Board schematic	1.00	2018/01/18	Download
  BOM list	----	2018/--/--
  Assembly drawing	1.00	2018//01/16	Download

• eLinux - R-Car/Boards/Kingfisher


  For more information on Kingfisher, please refer to here.
  https://elinux.org/R-Car/Boards/Kingfisher




  Recomended Camera


  For more information on Kingfisher, please refer to here.
  https://elinux.org/R-Car/Boards/Kingfisher
  上記WEB Page 内の「Connection-confirmed Hardware information」をご覧ください。
