SEMB-1401

IoT-Engine RZ/T1

This SEMB1402 is an IoT-Engine standard CPU module equipped with a Renesas Electronics microcomputer (RZ/T1).
The I2C communication of an arbitrary sequence can be executed simultaneously with maximum communication performance on 8 channels without CPU load using fvIO technology. (Communication is possible without gaps at 400 Kbps)
The acquired data can be sent to the server via USB or WiFi / Wi-SUN.

CPURZ/T1 (Renesas Electrinics)

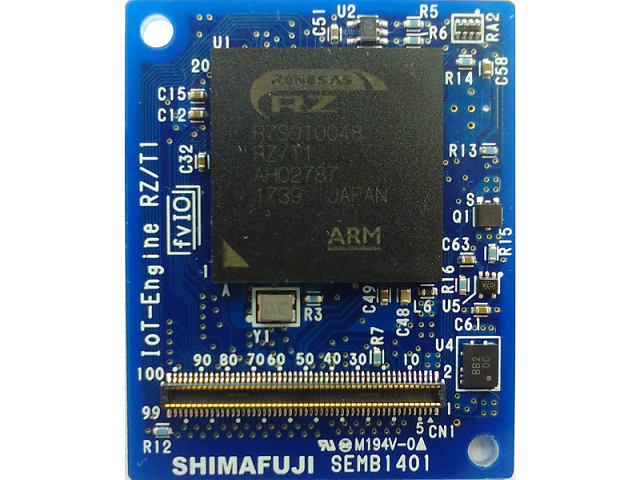

• Product Image
• Specification
• Documents

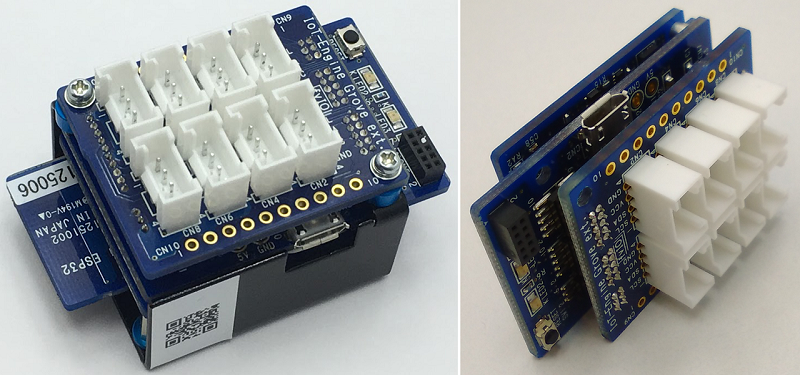

• The image with option board

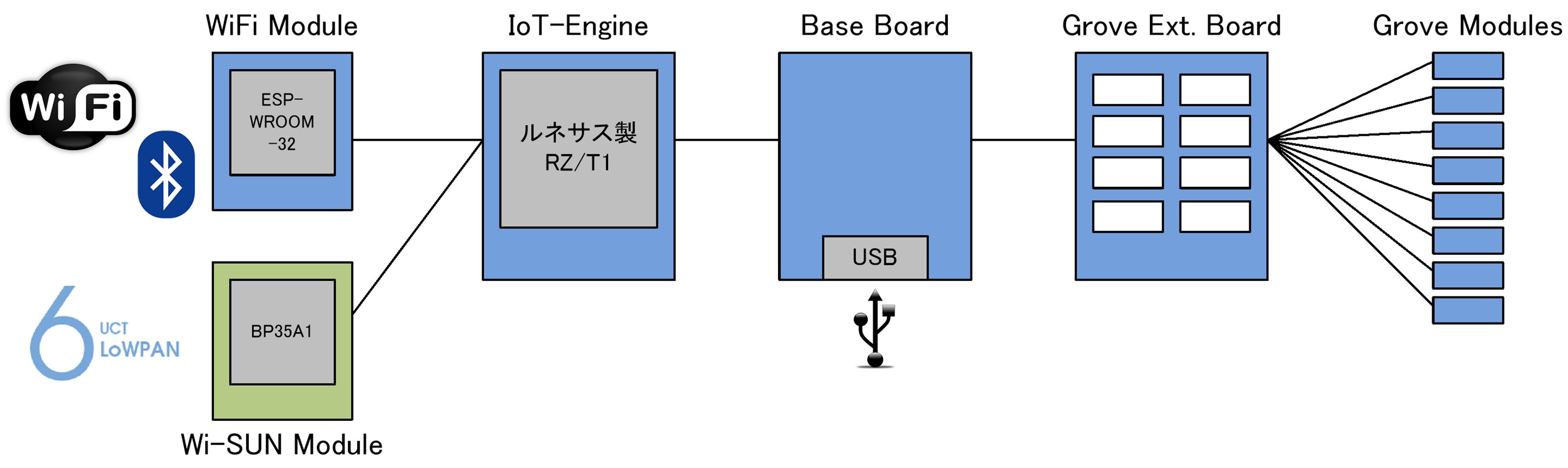

  Diagram of connection


• SEMB-1401
  CPU	RZ/T1 　Cortex-R4F　　　　　600MHz 　Build in Memory 　　1024+512KB
  Memory	SPI Flash Memory　　　　　8MB
  External connection	IoT-Engine Ext. Connector　　×1
  Power	DC3.3V　　(IoT-Engine Connector)
  Size	30mm × 37mm

  Option board Spec.
  WiFi	ESP-WROOM-32 　WiFi：802.11 b/g/n/e/i 　Bluetooth v4.2 BR/EDR, BLE
  External connection	Grove Ext. Connector（I2C） x8 US2.0 Target（MicroB）　　　x1 JTAG　　　　　　　　　　　　 x1
  Power	DC 5V　　(USB MicroB)
  Overall size	30mm × 50mm × 28mm (Excluding protrusions)

• Brochure	SEMB1401EN.pdf
