SpaceWire-to-GigabitEtherR3

SpaceWire-to-GigabitEtherR3
SpaceWire-to-GigabitEtherR3

- Provides 200Mbps SpaceWire packet transfer via TCP/IP socket to/from PC.
- Implements a SpaceWire router and the software-less TCP/IP stack on the FPGA.
- SpaceWire Link status monitor LED (4 LEDs)
- Timecode generation and send out function

CPU-

  • Product Image
  • Specification
  • Documents

  • Connection

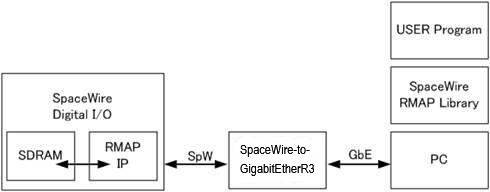

    Direct Connection

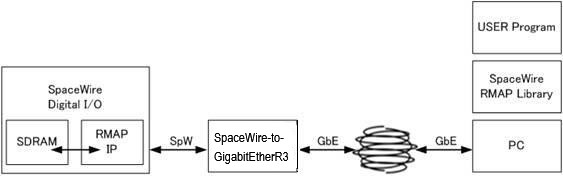

    Connection Via LAN

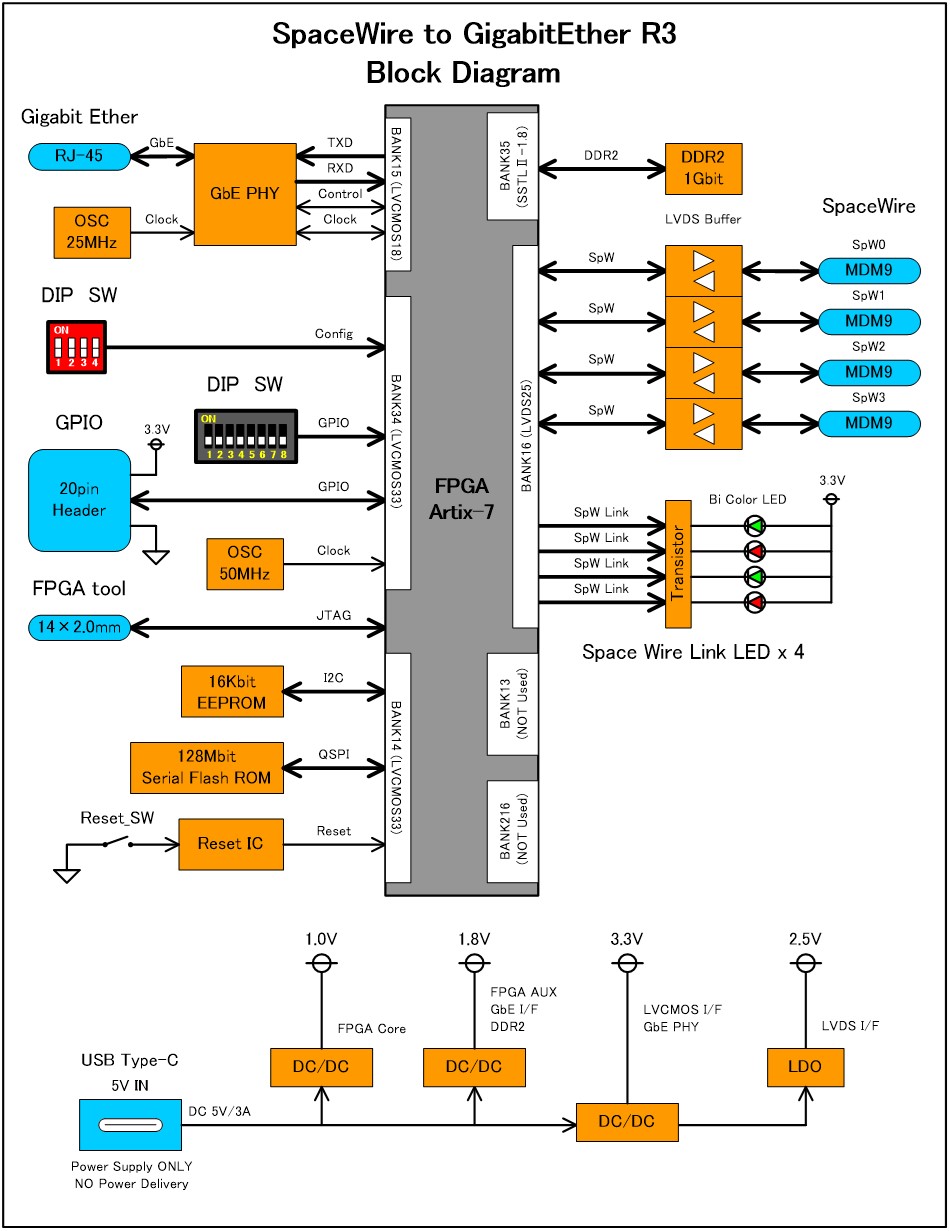

    Block Diagram

  • Function FPGA: XC7A200T-1FBG484C
    SpaceWire: 4ch
    GigabitEther: 1ch
    Memory: DDR2 SDRAM 1Gbit
    Link LED : 4bit
    Speed SpaceWire: Max.200Mbps
    Ethernet : 10/100/1000Base-T/TX
    Power ＋5V/1.5A(Typ）
    USB Type-C
    　＊NOT Supplied the AC adapter with this unit
    Size 136mm（W）x74.6m（D）x25.2mm（H）
    Weight 330g
  • Brochure SpaceWire-to-GigabitEtherR3 SP34EB002E.pdf

    ***Those files need password to open***
    ※Please refer the password come with the SpaceWire-to-GigabitEtherR3

    File Revision Date Download
    hardware specification
    		 1.00 2024/05/21 SpWtoGbER3_HardwareSpecEN
    PC Soft
    		 1.51 2024/05/24 SpWtoGbER3_PC_Soft_Rev1p51
    IP address setting software
    		 1.00 2024/05/24 SpWtoGbER3_IP_App_ver1p00
    Written file
    SpaceWire to GigabitEther R3 bin File
    		 1.00 2024/05/24 SpWtoGbER3_FPGA_Bin_Rev1p00
